SELECTION AND SPECIFICATION OF FIRE ALARM CATEGORY

SELECTION AND SPECIFICATION OF FIRE ALARM CATEGORY IN ACCORDANCE WITH BS 5839-1

1.  Introduction
 “Categories” of fire alarm system were first introduced into BS 5839-1 in 1988 - when they were described as “Types” of system. In the 2002 revision of BS 5839-1, two new Categories were added, L4 and L5. However, there still remains confusion, particularly amongst users, specifiers and fire risk assessors, regarding the application of these categories and the responsibility for specifying the appropriate category for any building.

The purpose of this guidance document is to clarify the responsibility for identifying the appropriate category of system, and to give general guidance on the typical category that is appropriate for different building uses.

This guide incorporates extracts from The Design, Installation, Commissioning and Maintenance of Fire Detection and Fire Alarm Systems by Colin S. Todd, whose assistance in preparing this guide is gratefully acknowledged.

2.  The Categories
BS 5839-1 defines eight categories of system, according to whether the system is purely manual or incorporates automatic fire detection, and, in the latter case, the purpose and extent of the automatic fire detection.

The eight categories of system are defined as follows:

Category M systems:
These are manual systems and therefore, incorporate no

automatic fire detectors.
Category L systems:
These are automatic fire detection systems intended for

the protection of life. They are further subdivided into the

following subcategories of system as follows:

Category L1:
Systems installed throughout all areas


of the building.

Category L2:
Systems installed only in defined parts


of the building, including all parts


necessary to satisfy the

recommendations of the code for a Category L3 system. The additional areas protected, over and above those protected in a Category L3 system, are those in which there is either high likelihood of fire starting or a high risk to life if fire does start.



Category L3:
Systems designed to give warning of



fire at an early enough stage to enable



all occupants other than, possibly



those in the room of fire origin, to



escape safely, before the escape



routes are impassable due to the



presence of fire, smoke or toxic gases.



To satisfy this objective, other than in



the case of very short corridors, fire



detectors need to be installed in all



rooms or areas that open onto the



escape routes.


Category L4:
Systems installed within those parts of



the escape routes comprising



circulation areas and circulation



spaces, such as corridors and



stairways.


Category L5:
Systems in which the protected area(s)



and/or the location of detectors is



designed to satisfy a specific fire safety



objective (other than that of a



Category L1, L2, L3 or L4 system).

Category P systems:
These are automatic fire detection systems intended for

the protection of property. There are then two




subcategories, namely:


Category P1:
Systems installed throughout all areas



of the building.


Category P2:
Systems installed only in defined parts



of the building.


3.  Responsibility for Selection of System Category

Since there are eight system categories defined in BS 5839-1, a reference to BS 5839-1 without a reference to a system category, for example, in a purchase specification; enforcement notice under fire safety legislation; or a fire risk assessment would be virtually meaningless. Within statutory requirements imposed by enforcing authorities - as part of any requirements imposed by property insurers and in any action plan of a fire risk assessment - the category of system to be installed should always be included in a specification. In addition, other than in the case of a Category M, L1, P1 and L4 system, further information needs to be included regarding the areas of the building that are to be protected by automatic fire detection. In a Category M system, there

are no such areas, while all areas are protected in a Category L1 or P1 system, and only the escape routes are protected in a Category L4 system.

In particular, it should be stressed that the responsibility for determining the appropriate system category for any application does not rest with the designer of the fire alarm system, such as a fire alarm contractor, who is not expected to have sufficient expertise in the principles of fire safety to come to a decision in this respect. Although many fire alarm designers may fortuitously have such expertise, the decision rests with the fire safety specialist rather than the fire alarm system specialist.


Thus, it may be considered that there is something of a “firewall” between the role of the fire safety specialist and the fire alarm system specialist. The information that is communicated between these two parties is the system category (see Figure 1). Moreover, it will be noted from Figure 1 that, in the case of certain categories, additional information also needs to be communicated.

The additional information that needs to be provided in the case of certain system categories is as follows:

Category L2:                                 The rooms or areas that need to be protected, over and

above those that require to be protected in a Category L3
system, and the type of detector to be provided.

Category L3:                                 The type of detector to be provided in rooms or areas
opening onto escape routes.
Category L5:                                 The  rooms  or  areas  of  the  building  that  are  to  be
protected, and the types of detectors to be installed. This

decision may arise from a fire risk assessment but it is a
misconception  that  this  will  always  be  the  case;  for

example, it may simply be that detectors are required to
operate fire protection measures (such as fire doors) or are

being installed in lieu of vision panels to give an early
warning to those in an inner room of a fire in an access

room.

Category P2:                                 The rooms or areas that are to be protected and the types
of detector that are to be installed. This decision may arise
from  a  form  of  property  protection,  or  business

interruption; risk assessment or may be dictated by the
requirements of property or business interruption insurers.


Although the system purchaser or their agent should inform the system designer as to which system category is required (e.g. via a tender specification), in practice this commonly does not occur as a result of a lack of understanding on the part of users and specifiers of the principles described above. If this does not occur, BS 5839-1 recommends that the designer make the purchaser or the purchaser’s agent clear of the category of system that is proposed prior to an order for the system being placed. This is to avoid disputes during the course of a contract regarding the form of system that is required and the areas that should be protected. In such cases, the FIA recommends that contractors protect their liability by recommending to purchasers that before placing an order for the system, they should seek further advice from a competent person or the relevant enforcing authority to ensure that the system proposed satisfies the requirements of legislation and the insurer of the property.

4.  Selection of System Category
Given that purchasers and specifiers are often unable to articulate the category of system required and any additional information that should be provided, it is of value for contractors and designers to have a good awareness of the category of system that will commonly be appropriate. The guidance below is intended to assist in this respect.

A Category M system is generally sufficient to satisfy the requirements of fire safety legislation in workplaces in which no-one sleeps. In the case of premises in which people sleep, quite extensive automatic fire detection is normally required. Generally, this will be a Category L2 or L1 system. In premises with cellular accommodation such as hotels, there is in fact, very little difference between a Category L2 and a Category L1 system. In a hotel or similar sleeping risk, the bedroom floors are generally protected by a system that is effectively equivalent to a Category L3 system but additional detection is provided throughout the premises, thereby making the system a Category L2 or Category L1 system.


Possibly, the least likely subcategory of Category L system to be specified would be a Category L4 system, in which automatic fire detection is provided only in escape routes. To ensure adequate warning of occupants before escape routes are made impassable by the presence of smoke (as would normally be required in a sleeping risk), at least a Category L3 system would normally be required.

However, there may be circumstances in which a Category L4 system would be appropriate; for example (as noted above) - although workplaces in which no-one sleeps need only have a manual fire alarm system to comply with legislation - some employers provide limited automatic fire detection to enhance the safety of occupants beyond the minimum legislation requirement. This may occur, for example, because some employees might work alone in a large building after normal office hours. If the offices are cellular in nature, a Category L3 system rapidly becomes akin to a Category L1 system, at very significant expense. It is sometimes argued that the installation of detectors only within escape routes provides significant enhancement of the safety of those employees at a much lower cost.

It is becoming increasingly common for automatic fire detection to be provided as one component of a fire engineering solution, in which a “package” of fire precautions is provided to satisfy the life safety objectives of legislation, without necessarily following, exactly, the “prescriptive” Codes of Practice that apply under the legislation. Fire risk assessments carried out to satisfy legislation can also identify the need for some form of fire detection, perhaps within a localised area, that does not always need to comply with the recommendations of BS 5839-1 for a Category L1, L2, L3 or L4 system. Such a system would, therefore, be a Category L5 system.

As noted above, the purpose of a Category L5 system is to support a specified fire safety objective or address a particular fire safety problem. It should, therefore, be possible to articulate the exact objective that the Category L5 system is designed to achieve. Again, this is solely the responsibility of the fire safety specialist, rather than the designer of the fire alarm system.

However, a Category L5 system can, in some cases, be very simple in nature. For example, in the design of means of escape, there is a fundamental principle that occupants of an “inner room”, from which escape is possible only by passing through a further (“access”) room, must have adequate means of warning them of a fire in the access room. This is most commonly achieved by the provision of a vision panel between the inner room and the access room. However, an alternative is to provide smoke detection within the access room. This principle could result in a very small number of detectors (even one) in the largest of buildings. The resulting Category L5 system would normally be provided in conjunction with a manual fire alarm system. The resulting system would then be described as a Category M/L5 system.

It follows from the above, that it should never be the case that a specifier simply calls for a Category L5 system without information as to the areas that are to be protected by automatic fire detection. It should never be the case that the fire alarm contractor needs to carry out a fire risk assessment to determine the design of a Category L5 system. It is much more likely to be the case that a fire risk assessment has identified and determined the need for fire detection in only specific areas. However, as previously stated, it is not always the case that the need for a Category L5 system arises specifically from a fire risk assessment.

While Category P systems may well greatly enhance life safety within a building, that is not their objective, which is purely protection of property or protection against interruption to the normal operations of the company as a result of fire. By providing early warning of a fire, enabling early extinguishment, it might be said that a Category P system, as in the case of any automatic fire detection system, also protects the environment by reducing the pollutants that will be produced by the fire and the amount of contaminated fire-fighting run-off water. For the highest level of protection, a Category P1 system would be provided, particularly in buildings that are critical to the operations of the company. In a Category P2 system, fire detection is installed in areas of high fire hazard or in areas in which the risk to property or business continuity from fire is high.

Annex A of BS 5839-1, which is reproduced as Appendix 1 of this guide, gives advice on the category of system that is typically installed in various types of premises. As the Annex is purely informative, its purpose is not to recommend these systems for the types of premises in question but simply to provide information on custom and practice, and on the conventional interpretation of fire safety legislation. More specific guidance on the systems necessary for compliance with legislation is contained in the next subsection of this guidance document.

5.  Legislative Requirements
In virtually all new buildings, a fire alarm system will be required by building regulations.

In England and Wales, guidance on compliance with the Building Regulations 2010 is given in Approved Document B, which subscribes to the view that automatic fire detection systems are not normally needed in non-residential occupancies. However, Approved Document B acknowledges that, even in non-residential occupancies, fire detection may be needed:

% to compensate for some departure from the guidance elsewhere in Approved Document B (e.g. relating to means of escape from fire)
% as part of the operating system for certain fire protection systems, such automatic door releases or smoke control systems
% where a fire could break out in an unoccupied part of the premises and prejudice the means of escape from any occupied parts of the premises
% in a building with phased evacuation, in which case, a system complying, at least, with the recommendations for Category L3 is advocated


In Scotland, guidance on compliance with the Building (Scotland) Regulations 2004 is contained in the technical handbooks that support the Regulations. The Scottish guidance is more onerous for some premises than the equivalent guidance in England and Wales. For example, automatic fire detection is recommended for entertainment and assembly buildings if there are more than 60 occupants; for the largest premises, a Category L1 system is recommended. Similarly, automatic fire detection is recommended for shops with more than 100 occupants; for the largest premises, a Category L3 system is recommended. For specific new buildings in Scotland, the relevant technical handbook should be consulted. It should also be noted that the Scottish technical handbook specifies the remote transmission of alarms to an alarm receiving centre in the case of residential care homes, hospitals and shopping centres.

The Northern Ireland Technical Booklet E provides guidance on compliance with the Building Regulations (Northern Ireland) 2000. For non-domestic premises, the technical booklet requires only a system complying with BS 5839-1, although there are specific situations in which automatic fire detection is recommended.

For existing buildings, Government guidance on compliance with fire safety legislation gives advice on fire alarm systems. Appendix 2 to this guide summarises the Government guidance for existing buildings, as set out in the relevant guides for both England and Wales and Scotland. Until appropriate guidance is published in Northern Ireland, the guidance applicable to England and Wales can be used in Northern Ireland.

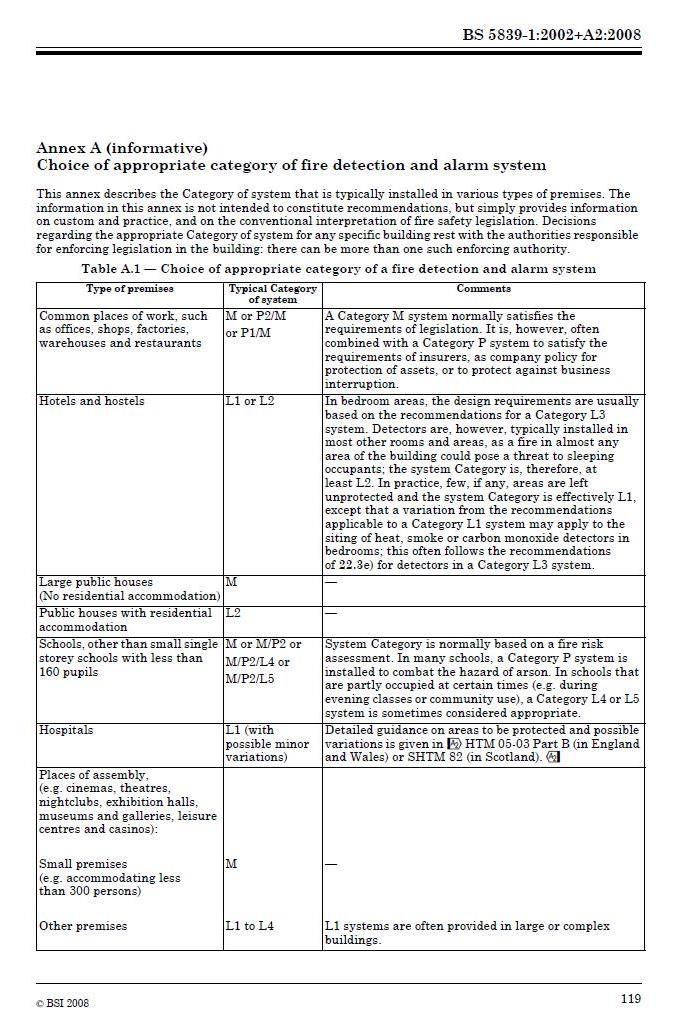

ANNEX A OF BS 5839-1:
